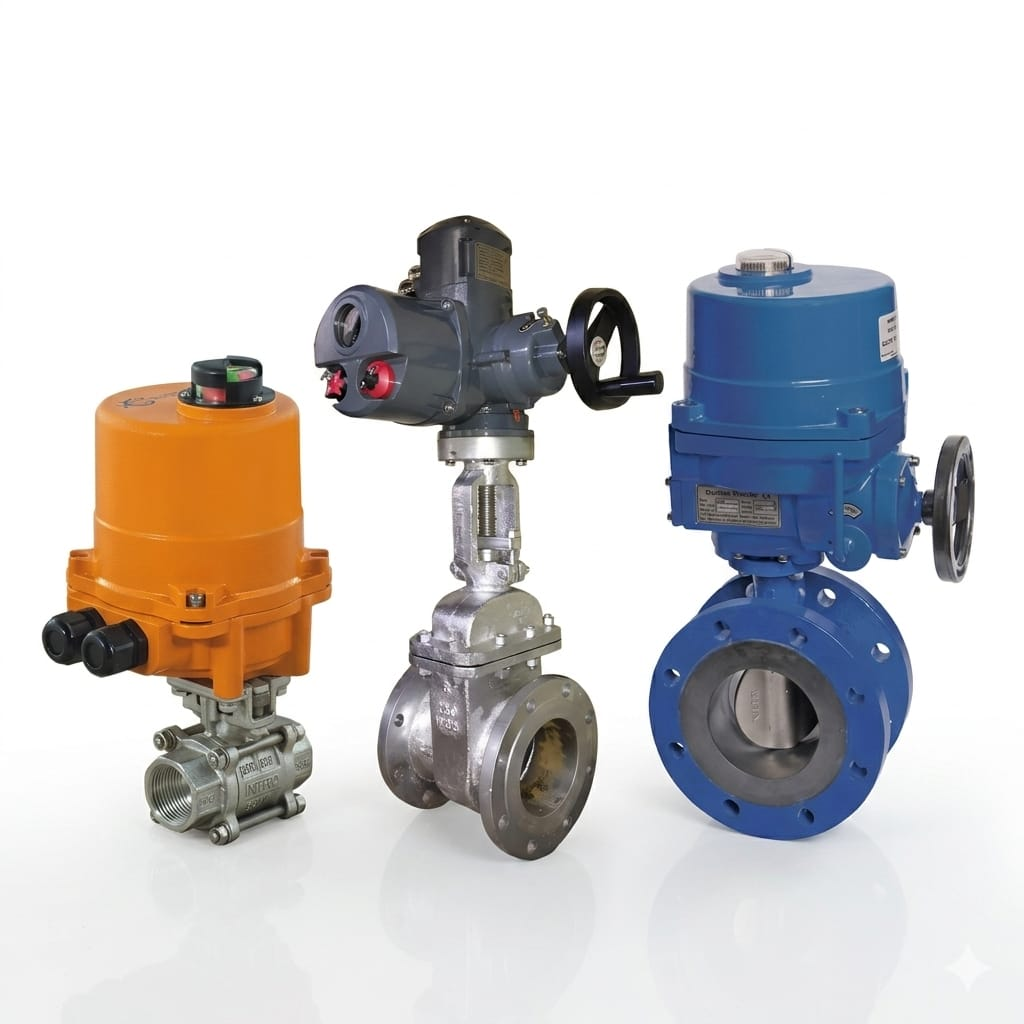

Electric Operated Valve

The Electric Actuated Valve (Motorized Valve) is the standard for precision automation in large-scale industrial networks. These valves provide high-torque operation with integrated smart features for remote process monitoring. At INTRO VALVE INDUSTRIES, we engineer our motorized solutions to deliver consistent performance in demanding environments, offering seamless integration with SCADA systems and providing detailed digital feedback for enhanced plant visibility.

Get Quote Core Features:

High-precision multi-turn or part-turn electric actuators
Advanced control logic for throttling and isolation
Built-in thermal protection and anti-condensation heaters

Control Systems: Modulating (4-20mA / 0-10V), On-Off operation, Profibus/Modbus compatible.

Feedback: Potentiometer feedback, Remote Position Transmitter, Limit Switches.

Manual Override: Declutchable handwheel for manual control during power failure.

Design Standards:
AWWA / API / ISO compatible valve bodies.

Component	Material Options	Technical Features
Actuator Enclosure	Die-Cast Aluminium Alloy	Polyester powder coated for superior corrosion resistance
Motor	High Torque Induction Motor	Insulation Class F, High starting torque, S2 duty cycle
Gear Train	Steel / Bronze Alloy	Self-locking worm gear system to prevent back-driving
Valve Body	Cast Iron / WCB / SS 304 / SS 316	Compatible with major industrial valve patterns (Ball, Butterfly, Globe)
Drive Bushing	Ductile Iron / Bronze	Removable drive bushing for easy machining to stem size
Local Indication	LED / Visual Dial	Continuous mechanical position indicator with protective lens
